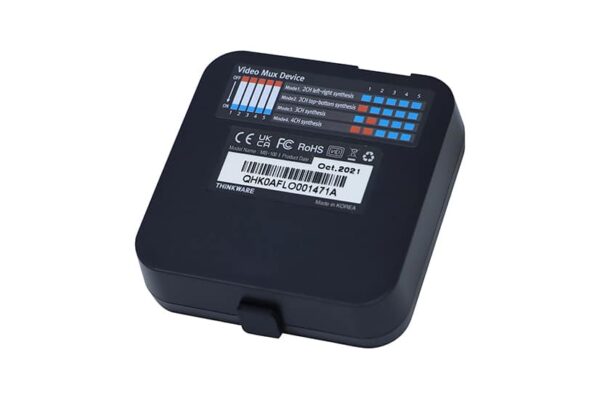

Thinkware TWAMB100

Description

Get total coverage by transforming your Thinkware Dash Cam into a multi-channel surveillance system with the Multiplexer Box accessory.

Key:
piano code switch
composite screen can be configured according to switch combination
Power Source:
2 (BAT, GND)
DC 12 V ~ 24 V
Cable length: 3 m
AV-IN (For optional camera connection):
4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
2.5 pi Stereo-jack type
AFHD
Cable length to connecting connector: 15 cm
AV-OUT(For front camera connection):
1 cable (AV-OUT)
2.5 pi Stereo-jack type
For front camera connection
Cable length: 3 m

Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
Composite Video: Full HD (1920 x 1080) @ 30fps
Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
Weight: 40.0 g (1.41 oz)
Storage Temperature: -20°~ 70°C (-4°~ 158°F)
Operating Temperature: -10°~ 60°C (14°~ 140°F)
